BC1 Charger

Zivan  High Frequency Battery Chargers

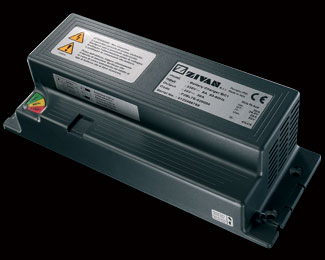

BC 1 - Single Phase Battery Charger

The Single Phase Battery Charger BC 1 is an innovative device with extraordinary versatility, reliability and efficiency. Different software may be installed to change the charging features and adapt them to every kind of battery. Due to its size and light weight, this model is especially suitable for on-board installation, in addition to the "on wall" installation. Consequently, the machine can be recharged from any available outlet, without driving the machine to a specific charging area.

Battery Capacity (AH) is for 12 (+/- 1) hours charge

Technical Features

• Input voltage: 230 VAC ± 10 %
• Input frequency: 50 - 60 Hz
• Efficiency: > 85 %
• Current absorbed by the battery: < 1 mA
• Operating temperature: from -20 to + 50 °C
• Output short-circuit protection (fuse)
• Inverse polarity protection (fuse)
• Accuracy on output voltage: ± 0.5 %
• Cooling: forced
• Case: metal base, cover in self-extinguishable ABS
• Size: 285 x 105 x 75 mm
• Weight: 1.390 kg
• Enclosure class: IP20
• CE
  In conformity with the requirements of the Low
  Voltage Directive and of the Directive EMC.
• Vibration Test:
  Sinusoidal vibrations (referring regulation IEC 68-2-26)
  Shock Test (referring regulation IEC 68-2-27);
  Bump Test (referring regulation IEC 68-2-29).
• Options: adjustable charging curves or battery capacity.

                    More and different charging curves are available for special batteries

           and non-standard applications.
