NGTOP Charger
Zivan High Frequency Battery Chargers

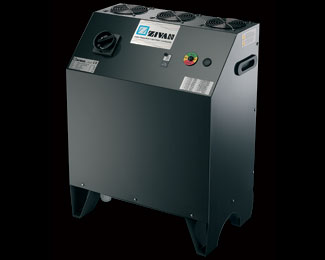

NG TOP - Three Phase Battery Charger
The Three-Phase charger NGTOP is an innovative device with extraordinary versatility, reliability and efficiency. Different software may be installed in order to change the charging features and to adapt them to every kind of battery. NGTOP is the highest power charger from Zivan's production range. The high power and efficiency of this charger assures the user of considerable energy savings with subsequent economic benefit.
Model | Type |
| Battery Capacity | I1 | Part no. | Mains Voltage | Mains Amps |
NG Top | 36 200 | 36 V | 2080 | 200 | FLCXMX-00000Q | 400 | 17 |
NG Top | 48 170 | 48 V | 1770 | 170 | FLEKMX-00000Q | 400 | 23 |
NG Top | 80 150 | 80 V | 1300 | 125 | FLIZMW-00000Q | 400 | 28 |
Battery Capacity (AH) is for 12 (+/-1) hours charge
More models are available for other battery voltages.
Technical Features
- Input voltage: 400 VAC ± 15 % Three phase
- Input frequency: 50 - 60 Hz
- Efficiency: > 85 %
- Minimum power absorbed: < 10 W
- Current absorbed by the battery: < 1 mA
- Operational temperature: from -20 to 50 °C
- Output short-circuit protection (fuse)
- Inverse polarity protection (fuse)
- Charging curve: programmable
- Accuracy on output voltage: ± 0.5 %
- Thermal compensation of battery voltage(optional with thermal sensor)
- Acoustic alarm
- Auxiliary contacts of main presence and end of charge(Standard Charger) or of air pump control and end of charge(Charger with air pump)
- Cooling: forced
- Case: Metal
- Size: 490 x 290 x 610 mm
- Weight: 30 kg
- Enclosure class: IP20
- CE
In conformity with the requirements of the Low
Voltage Directive and of the Directive EMC.
Main charging curves
More and different charging curves are available for special batteries
and non-standard applications.
