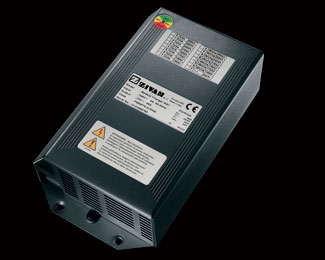

NG 1 Charger

The Single Phase Battery Charger NG 1 is an innovative device with extraordinary versatility, reliability and efficiency. Different software may be installed to change the charging features and adapt them to every kind of battery. Due to its size and light weight, this model is especially suitable for on-board installation, in addition to the "on wall" installation. Consequently, the machine can be recharged from any available outlet, without driving the machine to a specific charging area.

Battery Capacity (AH) is for 12 (+/-1) hours charge

Technical Features

• Input voltage: 230 VAC ± 10 %
• Input frequency: 50 - 60 Hz
• Efficiency: > 85 %
• Minimum power absorbed: < 5 W
• Current absorbed by the battery: < 0.2 mA
• Operating temperature: from -20 to+ 50 °C
• Output short-circuit protection (fuse)
• Inverse polarity protection (fuse)
• Charging curve: programmable
• Accuracy on output voltage: ± 0.5 %
• Thermal compensation of battery voltage
  (optional with thermal sensor)
• Acoustic alarm
• Auxiliary contacts of main presence and end of charge
  (Standard Charger) or of air pump control and end of charge
  (Charger with air pump)
• Cooling: forced
• Case: Metal base, cover in self-extinguishable ABS
• Size: 300 x 160 x 80 mm
• Weight: 2.2 kg
• Enclosure class: IP20
• CE
  In conformity with the requirements of the Low
  Voltage Directive and of the Directive EMC.

More and different charging curves are available for special batteries
and non-standard applications.
