UBC Charger

Zivan  High Frequency Battery Chargers

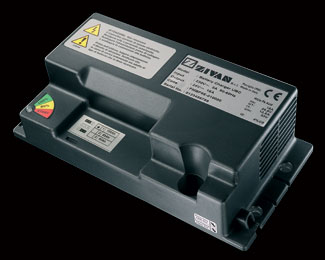

UBC - Battery Charger Single-Phase

UBC

The Single Phase Battery Charger UBC is an innovative device with extraordinary versatility, reliability and efficiency. Different software may be installed to change the charging features and adapt them to every kind of battery. Due to its size and light weight, this model is especially suitable for on-board installation, in addition to the "on wall" installation. Consequently, the machine can be recharged from any available outlet, without driving the machine to a specific charging area.

Model

Type

Battery

Voltage
Volts

Battery Capacity
AH

I1
Amps

Part no.

Mains Voltage
(V AC)

Mains Amps
(A AC)

UBC

12  18

12 V

120

15

FMAG9E-01000Q

230

2

UBC

24  15

24V

125

12.5

FMBF7E-01000Q

230

3

Battery Capacity (AH) is for 12 (+/- 1) hours charge

Technical Features

  • Input voltage: 230 VAC ± 10 %
  • Input frequency: 50 / 60 Hz
  • Efficiency: > 85 %Current absorbed by the battery: < 1 mA
  • Operating temperature: from 0 to + 50 °C
  • Output short-circuit protection (fuse)
  • Inverse polarity protection (fuse)
  • Accuracy on output voltage: ± 0.5 %
  • Cooling: forced
  • Case: metal base, cover in self-extinguishable ABS
  • Size: 235 x 115 x 65 mm
  • Weight: 0.850 kg
  • Enclosure class: IP20
  • CE
   In conformity with the requirements of the Low Voltage Directive
   and of the Directive EMC.
  • Vibration Test:
    Sinusoidal vibrations (referring regulation IEC 68-2-6);
    Shock Test (referring regulation IEC 68-2-27);
    Bump Test (referring regulation IEC 68-2-29).
  • Options: adjustable charging curves or battery capacity.


Main charging curves



More and different charging curves are available for special batteries
and non-standard applications.
