Zivan Discharger
Battery Discharger at Constant Current
The battery discharger, with constant current, is a portable device that can determine the efficiency of a battery, new or used. It can measure the Ah supplied by the battery before reaching the level at which it is considered discharged (typically 1.7 V/Cell).

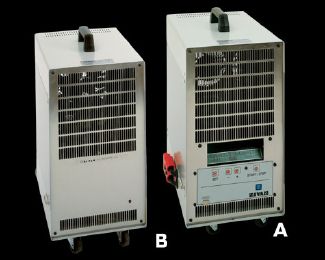

| Code | Type (A max) | Nominal Voltage | Maximum Voltage | Adjustable Discharge Current | Case |
| FS1A11 | 80V 150A | 80V | 96V | 1 - 150A | A |
| FSPD11 | 120V 100A | 120V | 160V | 1 - 100A | A |
| FSSA11 | 160V 75A | 160V | 192V | 1 - 75A | A |
| FS1C11 | 80V 300A | 80V | 96V | 2 - 300A | A+B |
| FSPE11 | 120V 200A | 120V | 160V | 2 - 200A | A+B |
| FSSB11 | 160V 150A | 160V | 192V | 2 - 150A | A+B |
These models are available with optional isolated serial port RS232, the last two characters of the code are replaced with the characters “15” (ex: FSIA11 becomes FSIA15).
Technical Features
- Input Voltage: 230 VAC
- Input Frequency: 50 ¸ 60 Hz
- Absorbed power: 150 W
- Tolerance of reading value: ± 1,5 %
- Thermal protection
- Inverse polarity protection
- Over Voltage protection
- Serial port RS232 (not isolated)
- Size: 565 x 265 x 440 mm
- Weight: 26 Kg

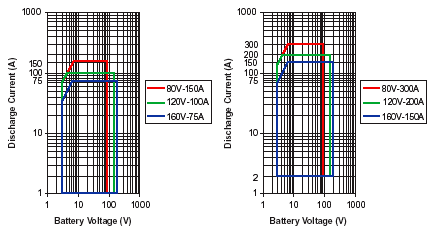

Discharging features
